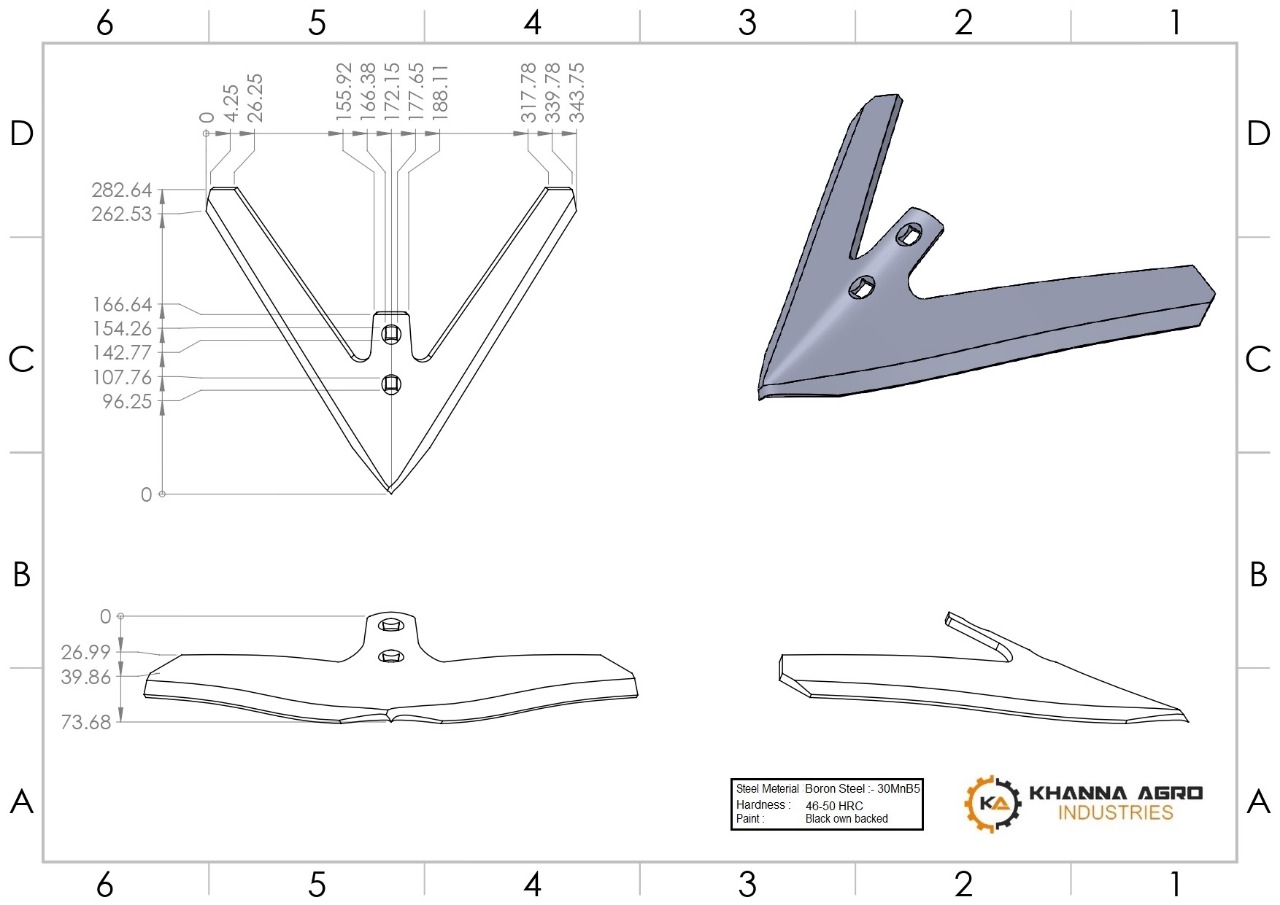

Duck Foot SMR-256

Characteristics:

Hardness: 45 ± 2 HRc. (boron steel)
Hardness: 35 ± 2 HRc. (high carbon)
Sweeps will fit most competitive equipment
Integral hardening to avoid deformations and rupture
Unique, proven design maintains cutting width throughout sweep life
30 percent extended life beyond that of regular sweeps
Product uniformity guaranteed by strict controls on quality and the production process.

Use:

Nose angle is precisely set for excellent soil penetration in both low and medium-crown wing designs provide excellent soil mixing and residue retention. It parts soil and improves mixing action, chemical incorporation, and weed eradication

Category:

Description

CULTIVATOR SWEEPS / DUCK FOOT SHOVELS
Product Code Width Length Thickness Holes Nos. Weight Per Piece
mm mm mm kg
DFS-08-06 205 215 6 2 1.10
DFS-08-07 205 215 7 2 1.30
DFS-08-08 205 215 8 2 1.40
DFS-08-10 205 215 10 2 1.70
DFS-10-07 265 210 7 2 1.55
DFS-10-08 265 210 8 2 1.80
DFS-10-10 265 210 10 2 2.25
DFS-10-12 265 210 12 2 2.70
DFS-12-07 305 250 7 2 2.20
DFS-12-08 305 250 8 2 2.50
DFS-12-10 305 250 10 2 3.10
DFS-12-12 305 250 12 2 3.75
